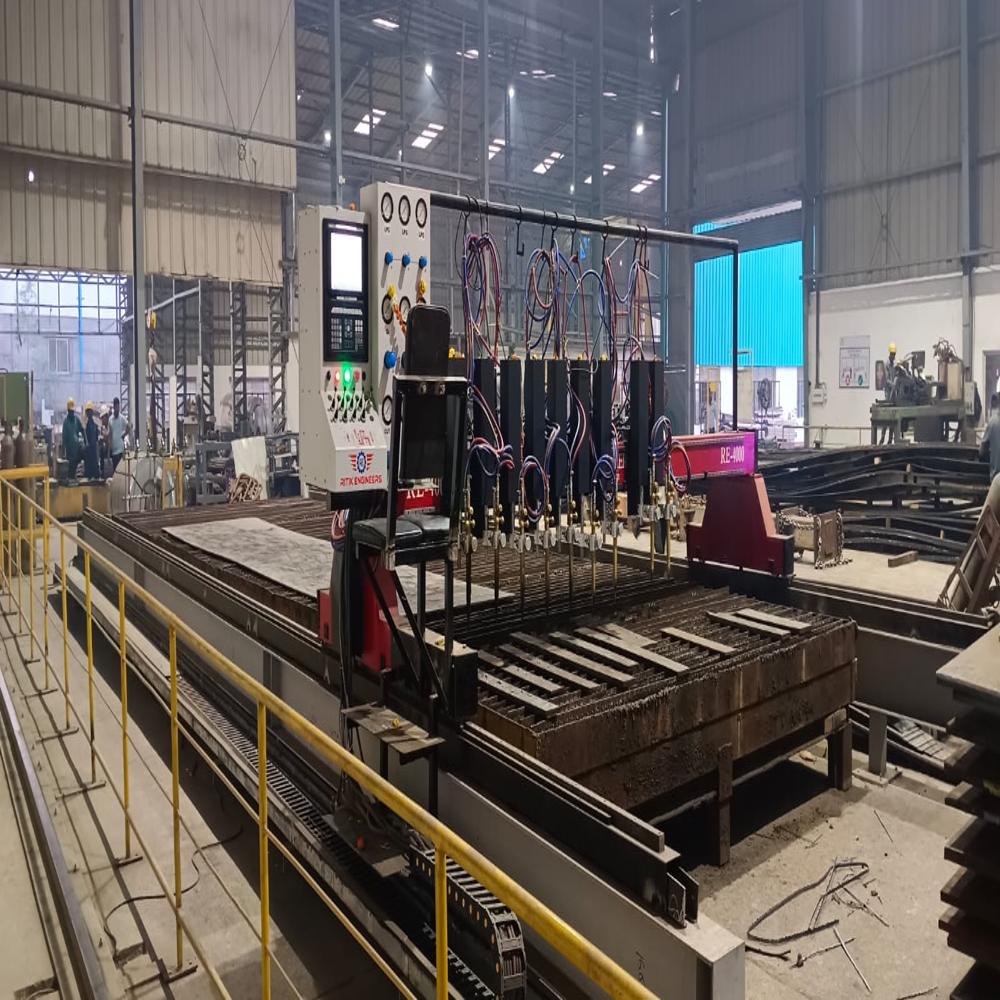

cnc gas cutting machine

Name: cnc gas cutting machine
Brand: RITIK ENGINEERS
Price: 1200000.0 INR
Availability: InStock

Price 1200000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

cnc gas cutting machine Specification

Drive Motor
Imported Stepper or Servo motors, as per configuration

Product Type
Industrial CNC Gas Cutting Machine

General Use
Industrial sheet metal fabrication, heavy engineering workshops, shipbuilding, construction

Material

Type
Gantry Type CNC Gas Cutting Machine

Capacity
Heavy duty, capable of working in industrial production environments

Weight (kg)
3500 - 8000 kg (depends on model and configuration)

Computerized
Yes, fully computerized CNC control

Automatic
Yes, fully automatic CNC operation

Cutting Speed
100 - 1000 mm/min (depends on material and thickness)

Cutting Thickness
5mm - 200mm (depending on torch and material)

Cutting Function
Automatic and high-precision gas/oxy-fuel cutting of ferrous metals

Cooling System
Air cooled, optional water cooling for torches

Drive Type
Servo or stepper motor-driven gantry (dual drive available)

Voltage
380V/415V, 50Hz/60Hz, 3 phase (customizable as per country)

Dimension (L*W*H)
Approx. 4000mm x 2000mm x 1600mm (customized models available)

Feature
Multi-torch capability, stable gantry design, user-friendly interface, robust construction, precision guides

Color
Standard Industrial colors (Red, Grey, or as per company branding)

Motor
Precision stepper or servo motors (dual motor drive for gantry)

Mechanical Precision
0.5 mm/m

Software Detail
CNC Controller with integrated software and support for G-code or compatible CAD/CAM software

Cutting Method
Oxy-fuel/Gas cutting

Control System
Advanced integrated PLC/CNC controller

Cutting Area
Customized, standard options such as 1500mm x 3000mm, 2000mm x 6000mm, or as per requirement

Cutting Material
Mild steel, alloy steel, and other ferrous metals

Service Support
Onsite installation, operator training, and after-sales support available

Input Method
USB interface, LAN interface for file transfer

Rail Length
Standard 6 meters (extendable as per requirement)

Working Humidity
< 95% RH, non-condensing

Environment
Suitable for heavy-duty industrial shop floors

No. of Torches
Multi-torch system (up to 6 torches) for simultaneous cutting

Power Consumption
Approx. 3-6 kW

Safety Features
Emergency stop, Overload protection, Proximity limit switches, Flame failure protection

Operating Temperature
0C - 45C

Gas Requirement
LPG/Acetylene/Propane (as per torch, customer choice)

Operator Panel
Digital display with tactile switches and indicators

Flame Torch Type
Oxy-acetylene, Oxy-Propane compatible

Guide Rail Material
Hardened steel for high accuracy and durability

Cut Edge Quality
Smooth edge with minimal dross, depending on material and thickness

Operating Pressure
0.4-0.7 MPa (Oxygen and fuel gas pressure as per torch type)

Ignition System
Manual or automatic flame ignition

cnc gas cutting machine About

Introducing our New Release CNC Gas Cutting Machine-the Magnificent choice for heavy-duty industrial metalwork. With a Multi-torch system (up to 6 torches) for simultaneous, high-precision cutting, you get the Best quality at the Lowest price! Experience robust construction and a stable gantry design, ensuring smooth edge finishes and Perfect performance. Last Chance to secure this fully automatic, user-friendly model with advanced safety and superior usability. Suitable for industrial shops, it comes with customizable cutting areas and strong after-sales support for worry-free operation.

Commercial Advantages of CNC Gas Cutting Machines

Our CNC Gas Cutting Machine stands out with its simultaneous multi-torch operations, delivering high production efficiency ideal for commercial-scale work. Its advanced CNC control system ensures unparalleled precision, while robust construction and computerized automation make it Perfect for intense industrial uses in shipyards, fabrication shops, and construction industries. Operators benefit from exceptional edge quality and minimal dross, making this machine the preferred choice for businesses seeking competitive advantages in sheet metal fabrication.

Supply Ability and Packaging for CNC Gas Cutting Machine

We ensure reliable Delivery and prompt Supply of our CNC Gas Cutting Machines across commercial sectors. Each product is carefully packed in industrial-grade crates to prevent transit damage, ensuring safe Goods Transport. Sample policy options are available for bulk procurement. With a robust supply chain and experienced logistics partners, we guarantee on-time Delivery, customized packaging upon request, and comprehensive pre-shipment inspections to assure quality and satisfaction for every client.

FAQ's of cnc gas cutting machine:

Q: How does the multi-torch system enhance the cutting process?

A: The multi-torch system allows simultaneous cutting with up to six torches, significantly increasing productivity and enabling consistent, high-quality output, especially in mass-production scenarios.

Q: What materials can the CNC Gas Cutting Machine process?

A: This machine is engineered to cut mild steel, carbon steel, alloy steel, and other compatible ferrous metals with thicknesses ranging from 5mm to 200mm, depending on torch and material type.

Q: When is it suitable to use manual versus automatic flame ignition?

A: Manual ignition is best for basic operations or maintenance, while automatic ignition ensures safer and faster starts, making it suitable for high-frequency, commercial cutting applications.

Q: Where can the CNC Gas Cutting Machine be installed?

A: It is designed for heavy-duty shop floors and industrial fabrication environments, with a robust build and features that ensure stable operation even in demanding conditions.

Q: What is the process for transferring design files to the machine?

A: Design files can be uploaded via USB interface or LAN connection, supporting direct transfer of G-code or compatible CAD/CAM files for seamless integration into your workflow.

Q: What benefits does the digital operator panel offer?

A: The digital operator panel provides clear display of operation status, tactile switches for quick adjustments, and intuitive indicators, leading to improved control and operator confidence during cutting tasks.
