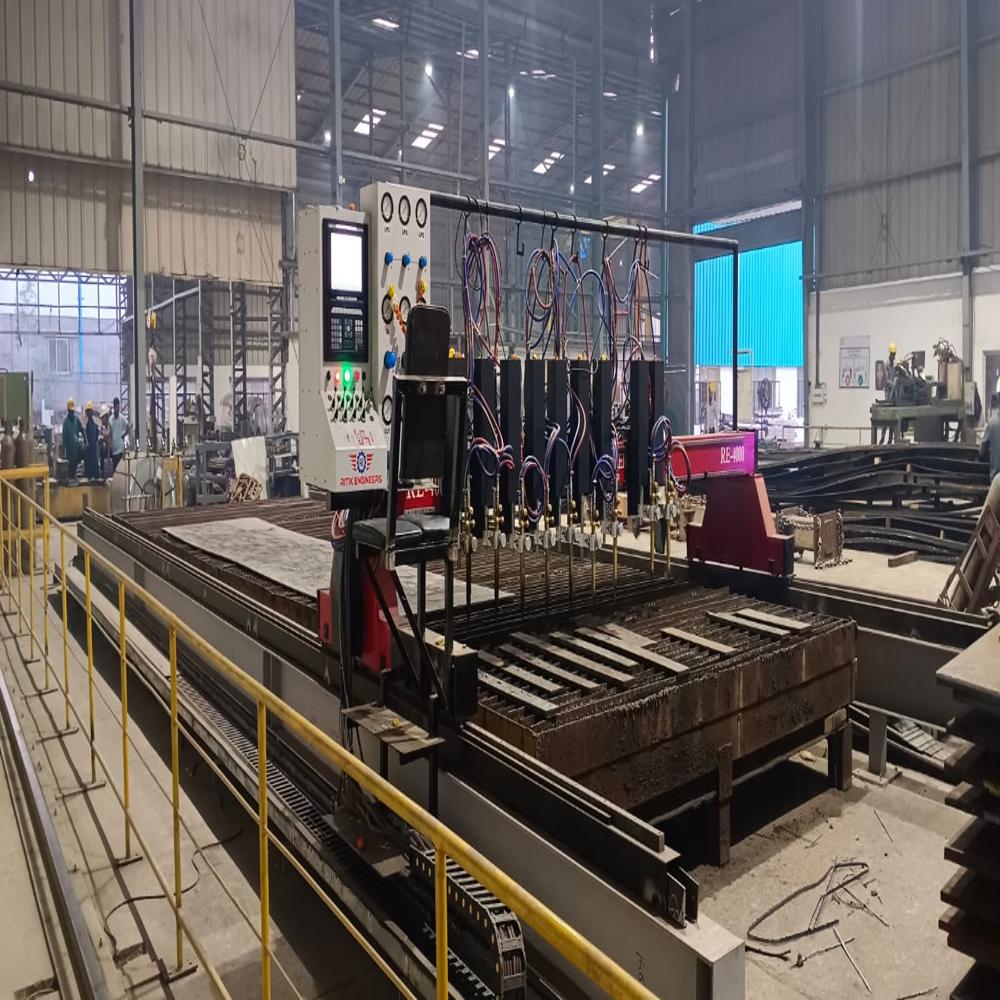

cnc gas cutting machine

Get a Price/Quote

cnc gas cutting machine Specification

Drive Motor
High-precision servo or stepper motors

Product Type
Heavy-duty Industrial Plate Cutting System

General Use
Industrial steel plate processing for fabrication and shipbuilding

Material
Mild Steel, Carbon Steel, Stainless Steel

Type
CNC Gas Cutting Machine

Capacity
Multi-torch simultaneous operation; 1-8 torches configured

Weight (kg)
Approx. 2500 - 3500 kg (depending on model)

Computerized
Yes

Automatic
Yes

Cutting Speed
50 - 750 mm/min (depends on material and thickness)

Cutting Thickness
Oxygen gas: up to 150mm (steel)

Cutting Function
Automatic precise oxy-fuel gas flame cutting

Cooling System
Natural air cooling

Drive Type
Dual-side rack and pinion drive

Voltage
220V/380V, 50/60 Hz

Dimension (L*W*H)
Approx. 3.5m x 14m x 2.5m (as per model)

Feature
Automatic torch height control, multiple torches, robust construction

Color
Industrial Red/Black/Grey

Motor
Stepper/Servo Motor Drive

Mechanical Precision
0.5 mm

Software Detail
Compatible with FASTCAM, StarCAM, or proprietary CNC software

Cutting Method
Oxy-fuel gas cutting (flame)

Control System
Dedicated CNC control panel with integrated interface

Cutting Area
3000mm x 12000mm (customizable)

Cutting Material
Mild steel, Carbon steel

Safety Features
Emergency stop, fume extraction interface, overheat protection

Rail System
Heavy-duty linear guide rails (hardened steel)

File Format Support
DXF, G-code, ESSI formats

Ignition System
Automatic and manual ignition options

Gas Types Used
Oxygen and Acetylene/Propane

Noise Level
< 70 dB

Power Consumption
2-5 kW (depending on configuration)

Language Support
English, multi-language firmware available

Humidity Range
90% RH, non-condensing

Repeat Position Accuracy
0.2 mm

Operating Temperature
5C to 45C

Interface
USB port, Ethernet (optional)

Application
Shipbuilding, construction, heavy machinery industries

Torch Quantity
Up to 8 powered torches for high productivity

Programmable Shape Library
Integrated basic shapes (rectangle, circle, flange, ring etc.)

Torch Height Control
Automatic with arc voltage sensing (optional)

cnc gas cutting machine About

Unlock astonishing productivity and precision with our Classic CNC Gas Cutting Machine, engineered for exceptional industrial performance. Redeem effortless operation through a dedicated CNC control panel and interface supporting DXF, G-code, and ESSI formats. Personalise your fabrication with up to 8 individually powered torches, automatic torch height control, and a programmable shape library. Compatible with a range of gases-Oxygen and Acetylene or Propane-this robust solution offers impressive repeat position accuracy of 0.2 mm. It excels in shipbuilding, construction, and heavy machinery sectors, ensuring the cutting process is safe, efficient, and consistently precise.

Competitive Edge and Applications

Experience an exceptional outlay of advanced features, delivering unrivaled productivity in steel plate processing. Designed for shipbuilding, construction, and general industrial fabrication, this machine's robust build and automatic processes offer both reliability and speed. Multi-torch operation, heavy-duty linear rails, and precise dual-side rack and pinion drive allow high-volume, high-accuracy cutting. It supports both mild and carbon steel, making it suitable for a range of environments demanding quality and consistency.

Packaging, Supply, and Delivery Insights

Every CNC Gas Cutting Machine is securely packaged to ensure it arrives intact and ready for rapid installation. Our reliable supply chain ensures an outlay of continuous availability, supporting orders of varying scale. Delivery schedules are tailored for prompt order completion-standard lead time ranges from four to eight weeks, depending on model configuration. Comprehensive packaging safeguards mechanical and electronic components, guaranteeing you receive your equipment in perfect condition, ready for immediate industrial deployment.

FAQ's of cnc gas cutting machine:

Q: How does the automatic torch height control benefit the cutting process?

A: The automatic torch height control, featuring arc voltage sensing, ensures consistent torch distance from the material, resulting in clean cuts and reduced material wastage by compensating for uneven surfaces.

Q: What types of gas can be used with this CNC gas cutting machine?

A: You can unlock processing with either Oxygen and Acetylene or Propane, providing flexibility depending on your specific material and operational requirements.

Q: Where is this CNC gas cutting machine most suitably used?

A: This machine is ideally deployed in shipbuilding, heavy machinery fabrication, and construction industries, excelling in environments where robust, high-volume plate cutting is essential.

Q: What safety features are included with the machine?

A: Exceptional safety is delivered through features like emergency stop, fume extraction interface, and overheat protection, safeguarding both operators and equipment during heavy-duty operation.

Q: When can you expect delivery after placing an order?

A: Depending on your configuration and location, standard order completion and delivery time ranges from four to eight weeks, ensuring punctual supply and installation.

Q: How can files be transferred to the machine for use?

A: Files in DXF, G-code, or ESSI formats can be conveniently uploaded using the integrated USB port, or optionally via Ethernet, streamlining the workflow from design to production.
