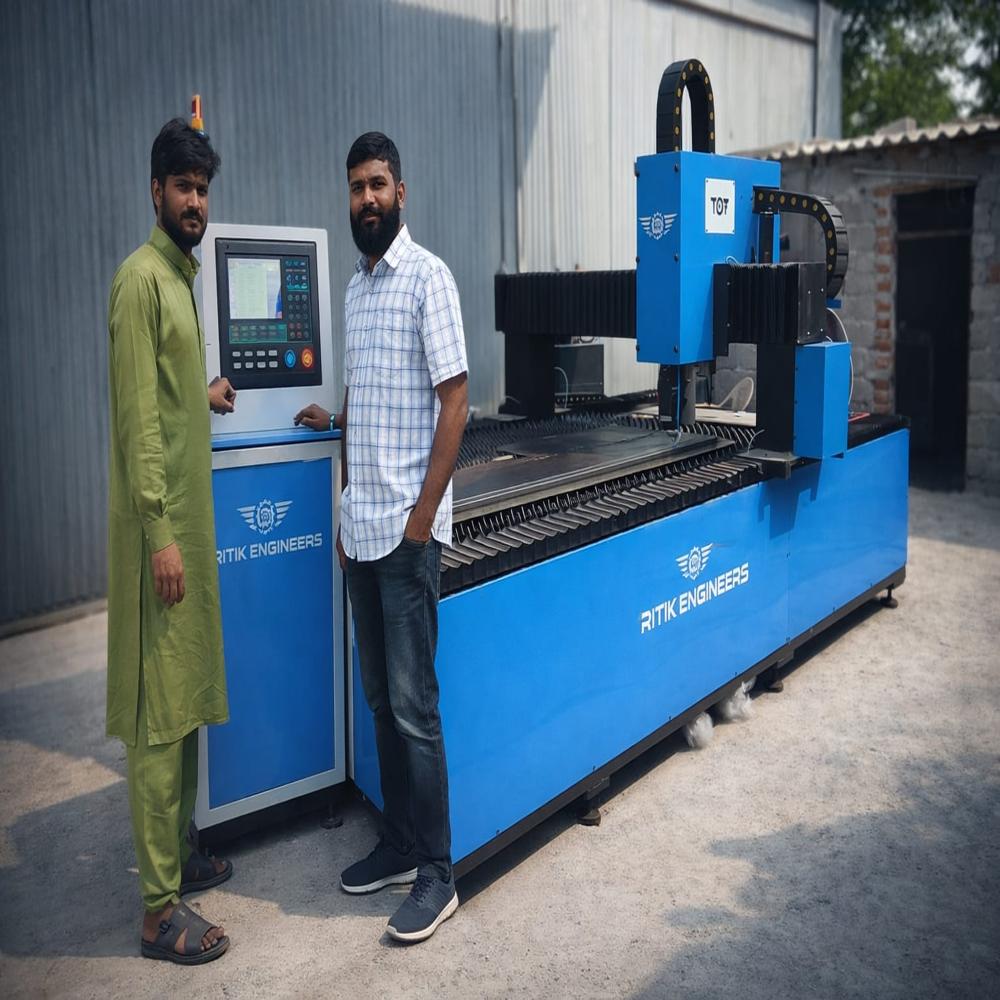

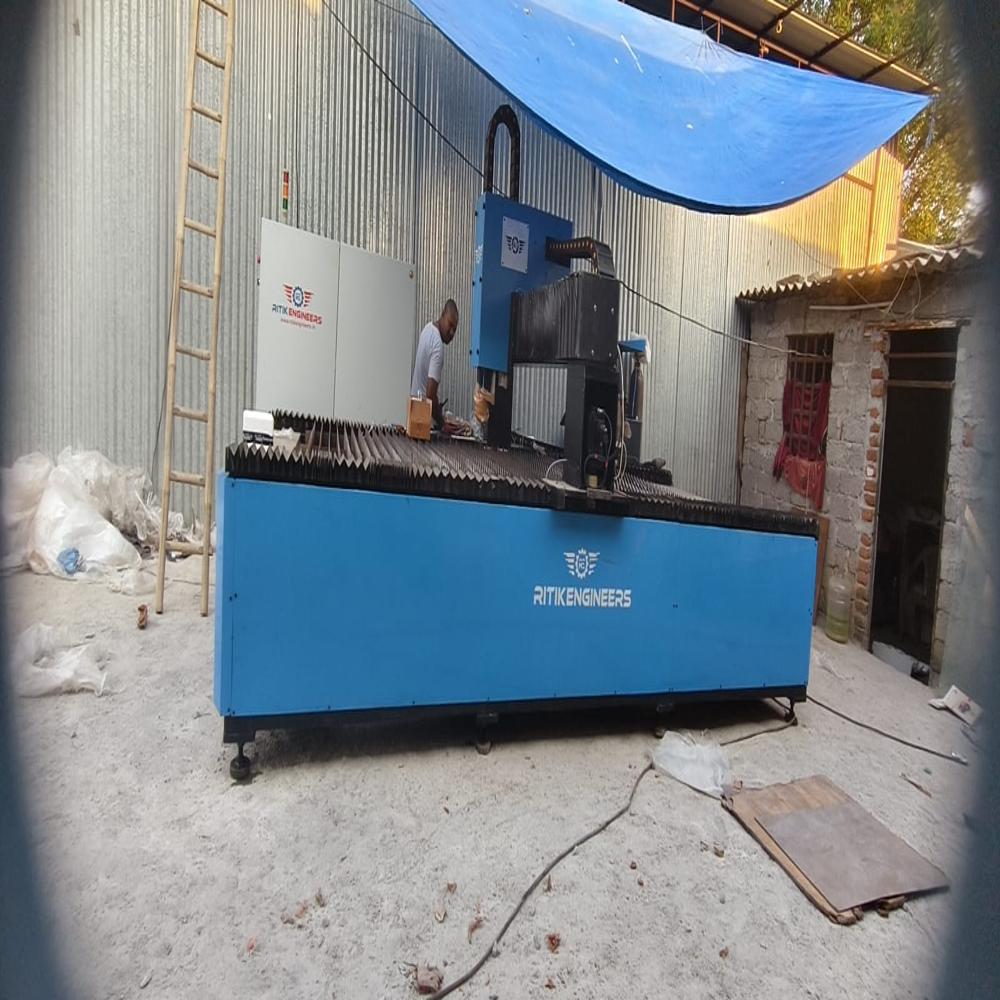

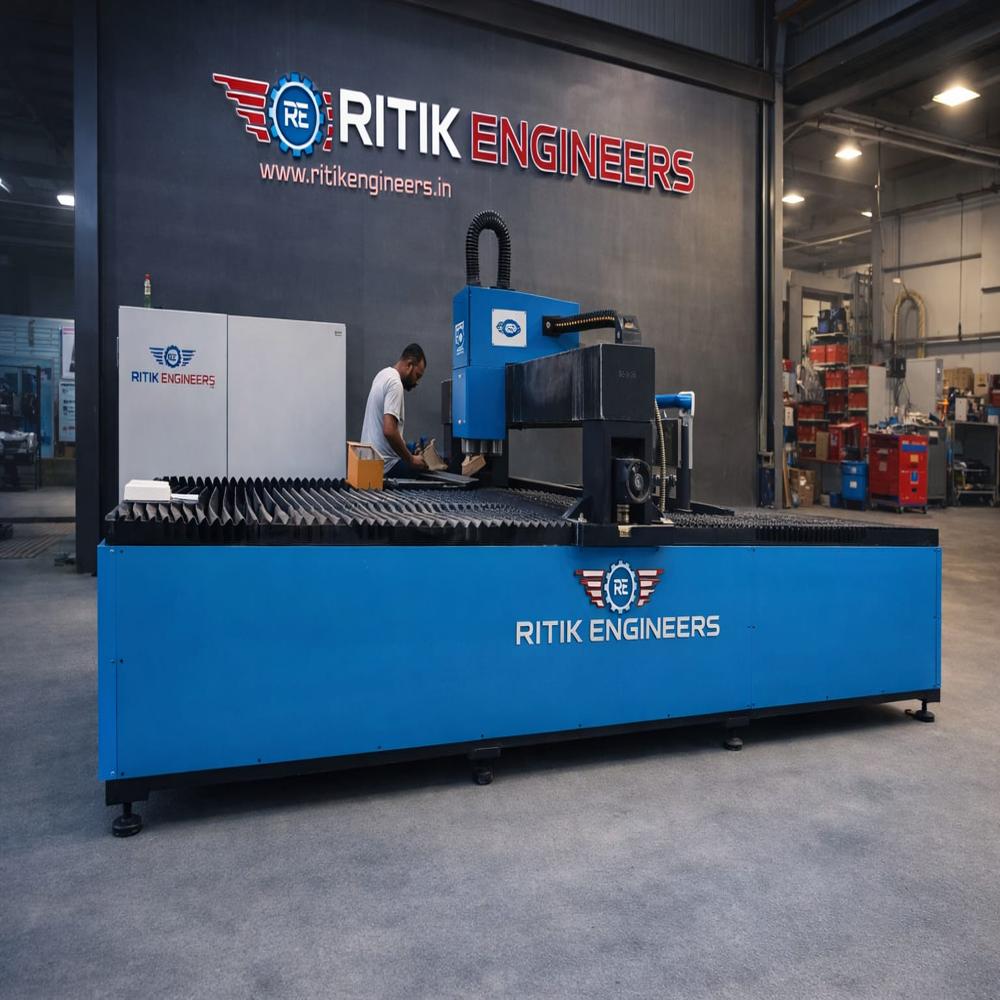

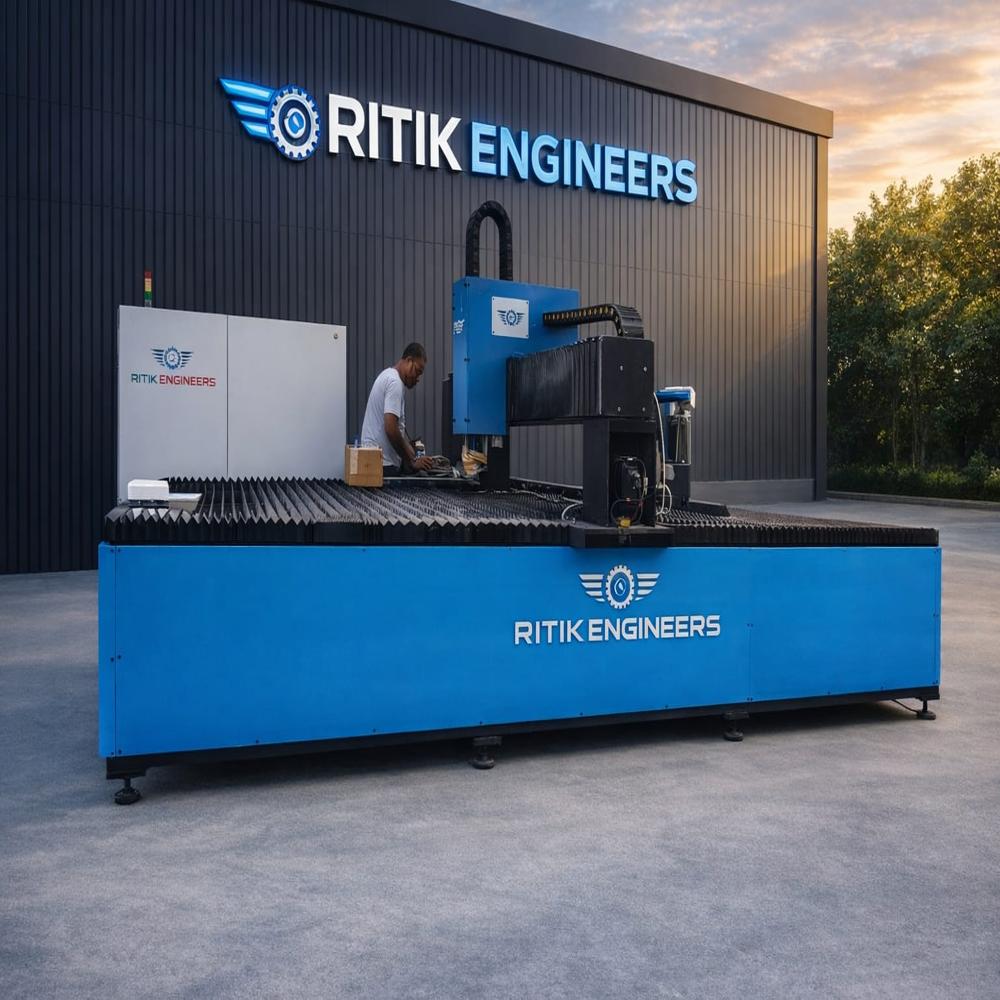

cnc laser cutting machine

Name: cnc laser cutting machine
Brand: RITIK ENGINEERS
Price: 1700000.0 INR
Availability: InStock

Price 1700000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

cnc laser cutting machine Specification

Phase
Three Phase

Power
1000W / 1500W / 2000W / 3000W (optional)

Usage & Applications
Metal sheet cutting, industrial fabrication, signage, automotive parts, electrical cabinets

Technology
Fiber Laser Cutting

Working Area
1500 mm x 3000 mm

Product Type
Laser Cutting Machine

Laser Type
Fiber Laser

Material
Mild Steel, Stainless Steel, Aluminum, Brass, Copper

Cutting Thickness
Up to 25 mm (mild steel), 12 mm (stainless steel), 8 mm (aluminum)

Cutting Area
1500 mm x 3000 mm

Cutting Speed
Up to 60 m/min (material dependent)

CNC Or Not
Yes

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Water Cooling

Control Software
CypCut / FSCUT / Customized

Graphic Format Supported
AI, PLT, DXF, BMP, Dst, Dwg

Control System
CNC Control

Voltage
380V/50Hz (customizable)

Weight (kg)
2200 kg

Dimension (L*W*H)
4450 mm x 2300 mm x 1800 mm

Capacity
Continuous operation, 24/7 duty cycle

Feature
High precision, high speed, low maintenance, automatic focus laser head, dust-proof structure

Color
Blue/White/Custom

Dust Extraction
Integrated Smoke and Dust Removal System

Interface Language
Multi-language Support

Safety Protection
Enclosed structure with Safety Interlock, Emergency Stop Button

Positioning Accuracy
0.03 mm

Operating Temperature
5C - 40C

Laser Source Brand
Raycus / IPG / Maxphotonics

Worktable Type
Blade Table

Installation Service
Available

Transmission
Imported Linear Guide Rail and Rack

Power Consumption
Less than 10kW depending on model

Maintenance
Low, with remote diagnostic support

Drive System
Dual Servo Drive, Rack & Pinion

Operator Interface
Touch Screen Control Panel

Repositioning Accuracy
0.02 mm

Table Size
Standard 1500 mm x 3000 mm (customizable)

Software Compatibility
Supports CAD/CAM Software

Support & Training
On-site installation & training provided

Assist Gas
Oxygen, Nitrogen, Air

Cut Edge Quality
Smooth, burr-free edges

Max Acceleration
1.0 G

cnc laser cutting machine Trade Information

Minimum Order Quantity
1 Number

Delivery Time
5-10 Days

cnc laser cutting machine About

Discover soaring precision and top-tier performance with our CNC Laser Cutting Machine, now available for sale. Equipped with a renowned dual servo drive and imported rack & pinion for exceptional movement, this machine offers a scarce combination of 0.03 mm positioning and 0.02 mm repositioning accuracy. Cut up to 25 mm in mild steel or 12 mm in stainless steel with smooth, burr-free results. Find advanced safety protection, integrated dust extraction, and multi-language interface-ideal for demanding industrial applications. Limited availability-secure your advantage today.

Features, Use Directions & Suitability

This CNC laser cutting machine boasts features like automatic focus laser head, enclosed dust-proof structure, and low-maintenance operation. Users simply upload files in supported formats such as DXF or AI, set cutting parameters via the touchscreen interface, and begin precise, efficient cuts. Suitable for metal sheet cutting in fabrication shops, signage, automotive, and electrical cabinet industries-its continuous 24/7 operation ensures it meets varied industrial demands.

Payments, Market Reach & Handing Over Details

Our machine is offered at a competitive sale price and caters to the main domestic market across India while also serving the export market. Each unit is handed over with robust packaging for secure transit, using industry-standard materials and international shipping protocols. Flexible payment terms-credit, bank transfer, or LC-are available to ease the purchase process, ensuring buyers enjoy a smooth transaction from order to installation.

FAQ's of cnc laser cutting machine:

Q: How accurate is the positioning and cutting of this CNC laser cutting machine?

A: The machine provides remarkable positioning accuracy of 0.03 mm and repositioning accuracy of 0.02 mm, ensuring precise and consistent cuts for all supported materials.

Q: What materials and thicknesses can this machine cut efficiently?

A: It efficiently cuts materials like mild steel (up to 25 mm), stainless steel (up to 12 mm), and aluminum (up to 8 mm), making it ideal for a variety of industrial applications.

Q: Where is installation and training for the machine provided?

A: On-site installation and training are available as part of our support, ensuring your team is well-prepared to operate the machine safely and effectively.

Q: What benefits does the integrated dust extraction and enclosed safety structure offer?

A: The enclosed structure with integrated smoke and dust removal ensures a safer working environment while protecting the machine's components, thus extending its operational life.

Q: How is the machine handed over and what are the packaging standards?

A: Every machine is handed over after thorough inspection, packed with robust materials meeting both domestic and export packaging standards, and shipped to ensure it reaches you in perfect condition.
