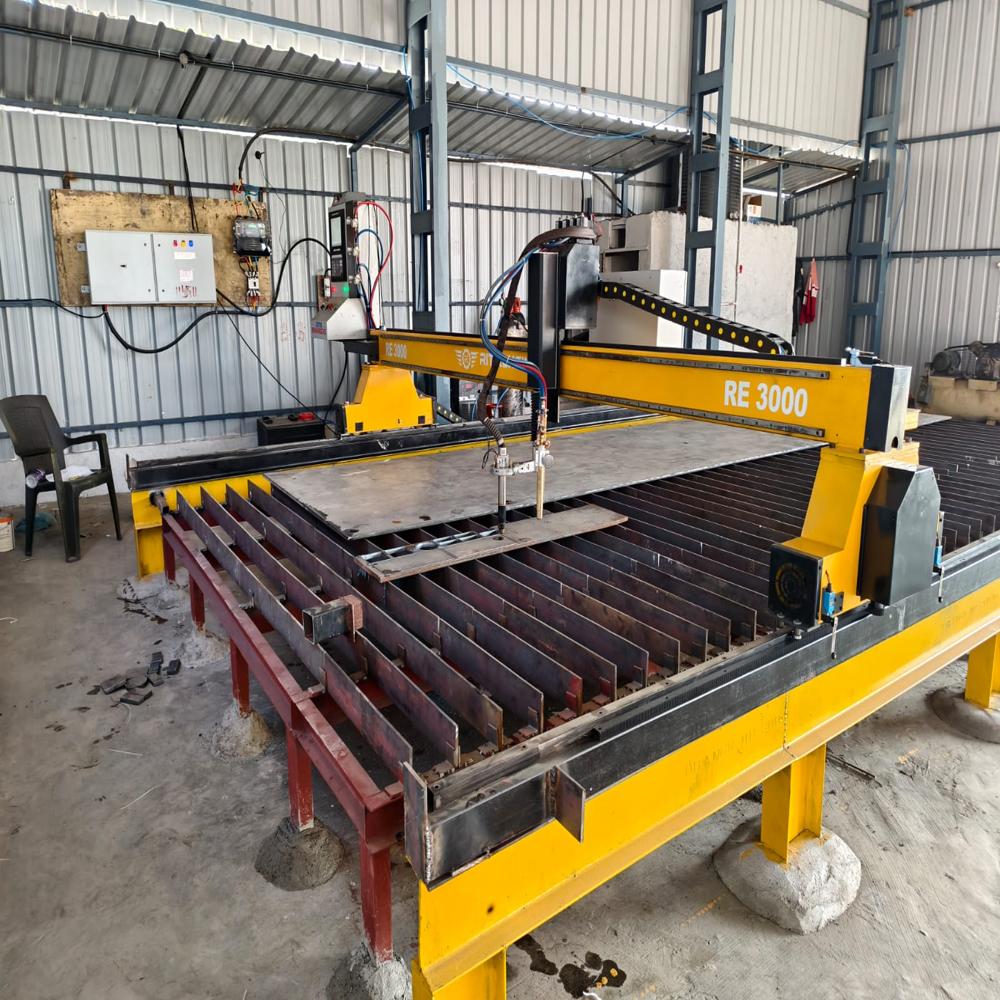

cnc plasma cutting machine

Name: cnc plasma cutting machine
Brand: RITIK ENGINEERS
Price: 650000.0 INR
Availability: InStock

Price 650000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

cnc plasma cutting machine Specification

Product Type
CNC Plasma Cutting Machine

General Use
Industrial Sheet Metal Fabrication

Material
Steel body, suitable for cutting MS/SS/Aluminum

Type
Gantry Type CNC Plasma Cutter

Capacity
Plate thickness up to 25 mm (mild steel, depends on power source)

Weight (kg)
Approx. 1600 kg

Computerized
Yes, with CNC System

Automatic
Yes, fully automatic cutting operations

PLC Control
Yes, integrated CNC controller

Bar Feeder
Not Included

Power Source
Electric

Power Consumption
5-10 kW (Depends on thickness and speed)

Rigidity
Heavy Duty Welded Structure

Voltage
220V/380V, 3 Phase, 50/60Hz

Motor
Stepper/Servo Motor (customizable)

Table Size
3000 mm x 1500 mm (custom sizes available)

Axial Choice
2 Axis (X, Y), optional Z-axis torch height control

Dimension (L*W*H)
Approx. 4000 mm x 2200 mm x 1600 mm

Feature
Automatic height controller, stable structure, high precision motion

Color
Yellow/Black

Cutting Torch
Plasma torch, compatible with multiple plasma power sources

Drive System
Dual drive (gantry) with precision gear rack

Positioning Accuracy
0.5 mm

Controller Interface
USB/Ethernet

Support File Format
G-Code, DXF

Installation
Floor-mounted, foundation required

Gas Supply
Compressed air/nitrogen/oxygen

Cutting Speed
0-8000 mm/min (adjustable)

Repeatability
0.3 mm

Cooling System
Air-cooled (standard)

Optional Attachments
Flame torch, water table, dust collector

Operating Temperature
5C to 40C

Software Included
Nesting software for automatic part layout

Safety Features
Emergency stop, software limit switches

Noise Level
<80 dB(A)

cnc plasma cutting machine About

Experience the prodigious capability of this CNC Plasma Cutting Machine, renowned for unmatchable precision and robust performance in industrial sheet metal fabrication. Engineered with a heavy-duty welded steel structure and automatic height control, this rare machine delivers cutting speeds up to 8000 mm/min with a positioning accuracy of 0.5 mm. Fully automatic operations, advanced dual drive gantry, and broad compatibility with multiple plasma power sources-jump on this opportunity to upgrade your fabrication line. Shop now for reliability, innovation, and unbeatable cutting finesse!

Versatile CNC Plasma Cutter: Uses, Features & Material Handling

Our CNC plasma cutting machine is designed for industrial sheet metal work, handling materials like mild steel, stainless steel, and aluminum up to 25 mm thick. Top features include a plasma torch, dual drive gantry, stable steel body, advanced controller, precision gear rack, and automatic part nesting software. The structure guarantees unwavering rigidity, while the machine maintains high precision, repeatability, and customizable automation for pro-grade results.

Sample Policy, Payment Procedures & Export Markets for CNC Plasma Machine

We offer competitive rates and flexible sample policies tailored to meet customers' needs for this CNC plasma machine. Drop-off and dispatch terms can be personalized to fit your international requirements. We accept major payment options, streamlining the procurement process for global clients. Our main export markets span Asia, Africa, the Middle East, and Europe, enabling us to supply this renowned equipment to a diverse range of industries worldwide.

FAQ's of cnc plasma cutting machine:

Q: How does the automatic height controller benefit plasma cutting?

A: The automatic height controller ensures consistent torch-to-plate distance, resulting in optimal cut quality and minimizing material wastage across varying material thicknesses.

Q: What file formats are supported for part design and cutting?

A: This CNC plasma cutting machine supports industry-standard G-Code and DXF file formats, making it compatible with most CAD/CAM software for hassle-free file transfer.

Q: Where is the machine installed and what foundation is required?

A: The machine is designed for floor-mounted installation and requires a proper foundation to support its heavy-duty welded steel structure and guarantee stability during high-speed cutting operations.

Q: What is the process for ordering and receiving the CNC plasma cutting machine?

A: Upon inquiry, you'll receive an offer with competitive rates. After confirming payment terms, our team arranges drop-off and installation at your facility, ensuring a seamless purchasing experience.

Q: Which materials can be cut and what is the maximum plate thickness?

A: You can cut mild steel, stainless steel, and aluminum plates up to 25 mm thick-though actual capacity depends on the plasma power source used.

Q: How is safety maintained during machine operation?

A: Safety is prioritized with features like emergency stop buttons and software limit switches, ensuring automatic shutdown in hazardous or out-of-limit scenarios.
